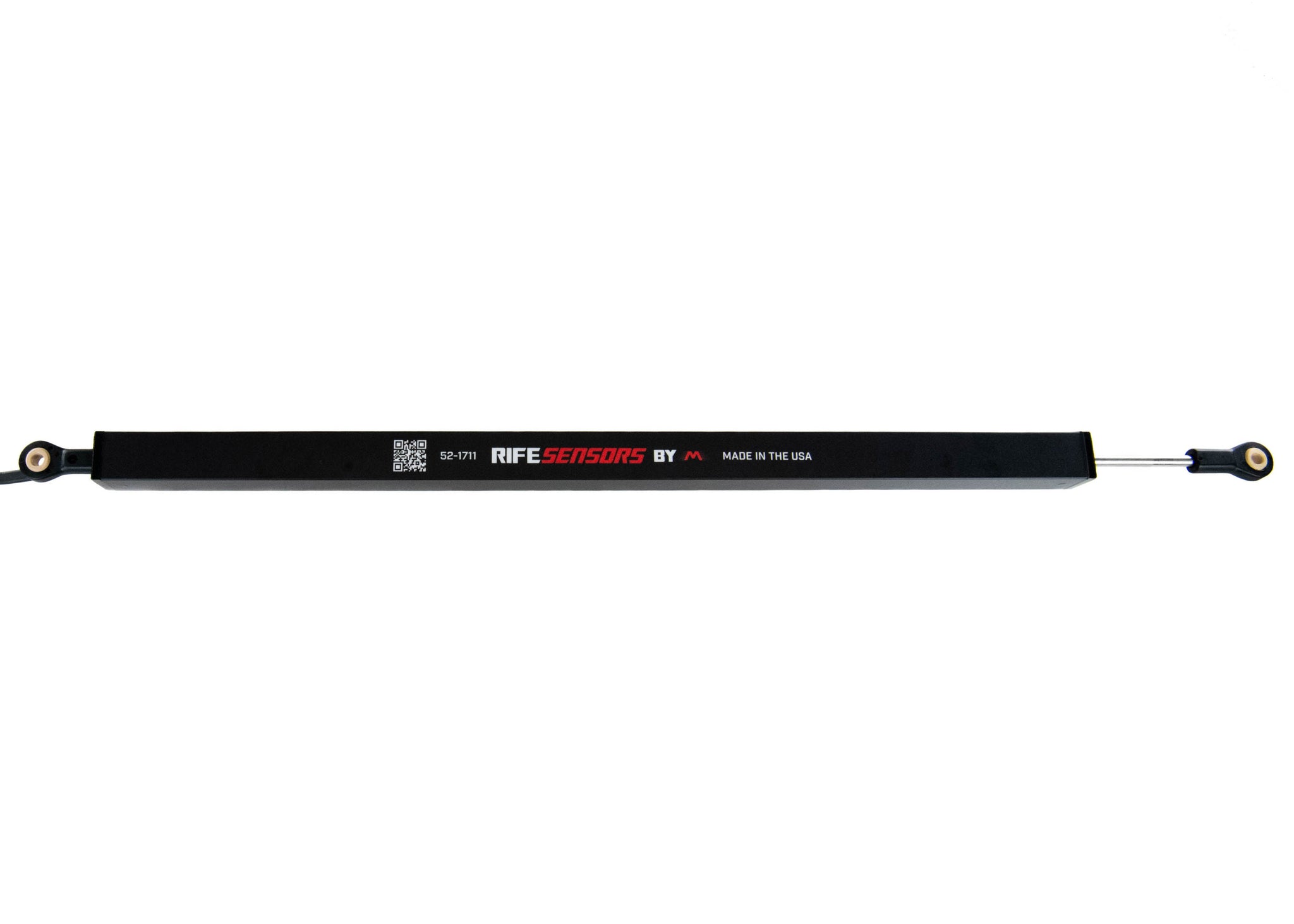

RIFE G-Series 11.5" Travel Shock Sensor 52-1711
Instructions: Click Here
Holley EFI Instructions: Click Here
Haltech Instructions: Click Here
FuelTech Instructions: Click Here
MoTec Instructions: Click Here
Shock Travel Sensors by RIFE Sensors are built to perform on the track, delivering you shock position (linear travel position) with a consistent and dependable signal. These sensors are 0-5v and come in a variety of lengths to suit your shock package. Compatible with Holley EFI, Haltech, Fueltech, Motec, Racepak, AEM and more!
100% Made in the USA
Note: this is the G-Spot Sensor Shock Sensor acquired by Motion Raceworks/RIFE sensors in 2023
Features:
- 3 Wire 0-5V Sensor Output
- Each travel sensor is hand built and tested at Motion Raceworks
- Optimized to 40 in/sec extension and compression
- Sample rate at 10,200 Hz
Specifications:
- Compressed Length: 17.4"
- Extended Max Length: 29.0"
- Max Travel Length 11.55"

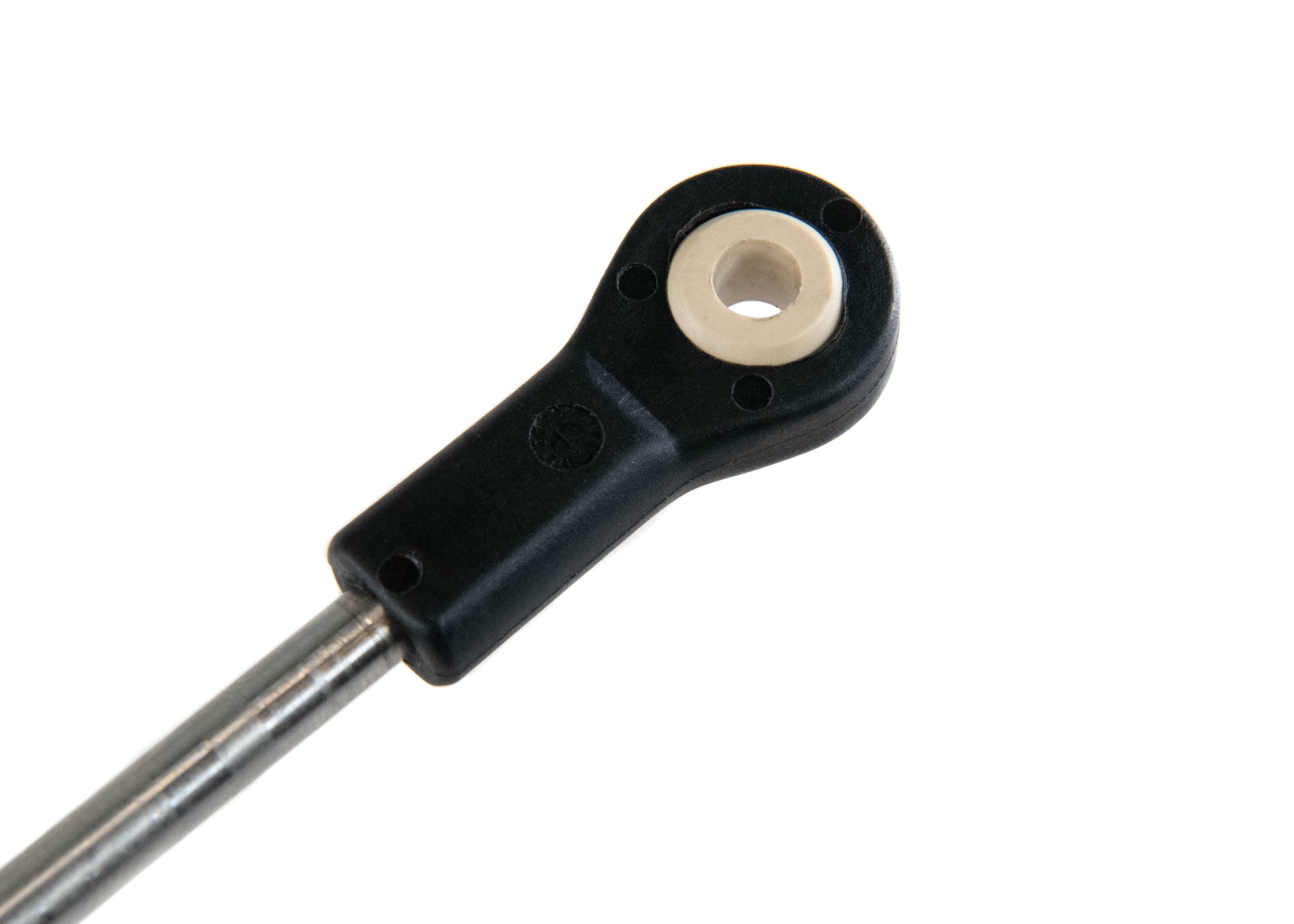

- Eyelet size: #10 screw or .200 inch

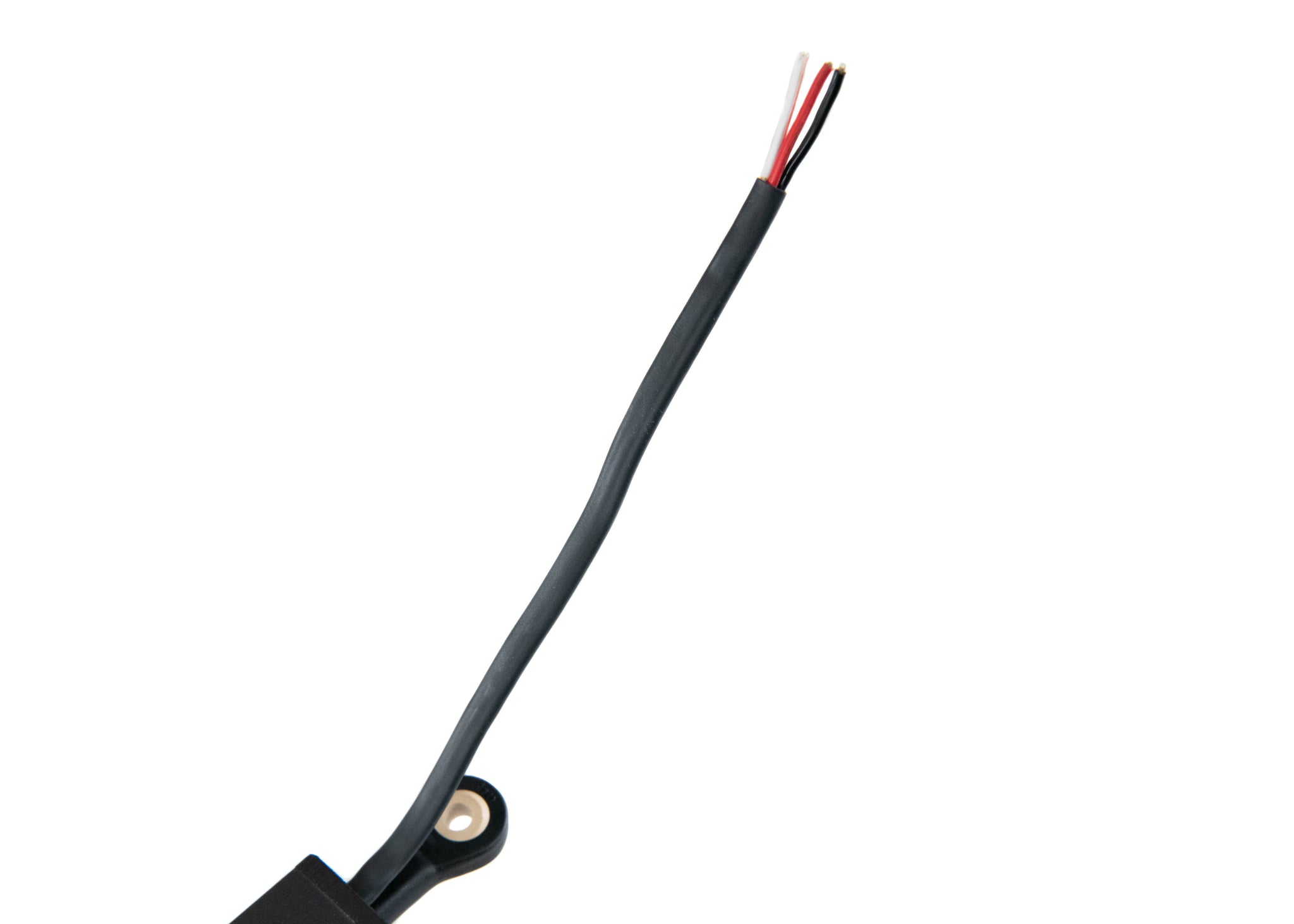

Wire Colors:
- Red: 5v Sensor Power
- White: Signal
- Black: Sensor Ground
***Please note: Sensor Power and Ground must come directly from ECU or data logger. These must be dedicated sensor power and ground.***
For calibration info: Click Here
For our whole line of shock sensor lengths and mounts click the link below!
https://www.motionraceworks.com/collections/rife-shock-travel-sensors
