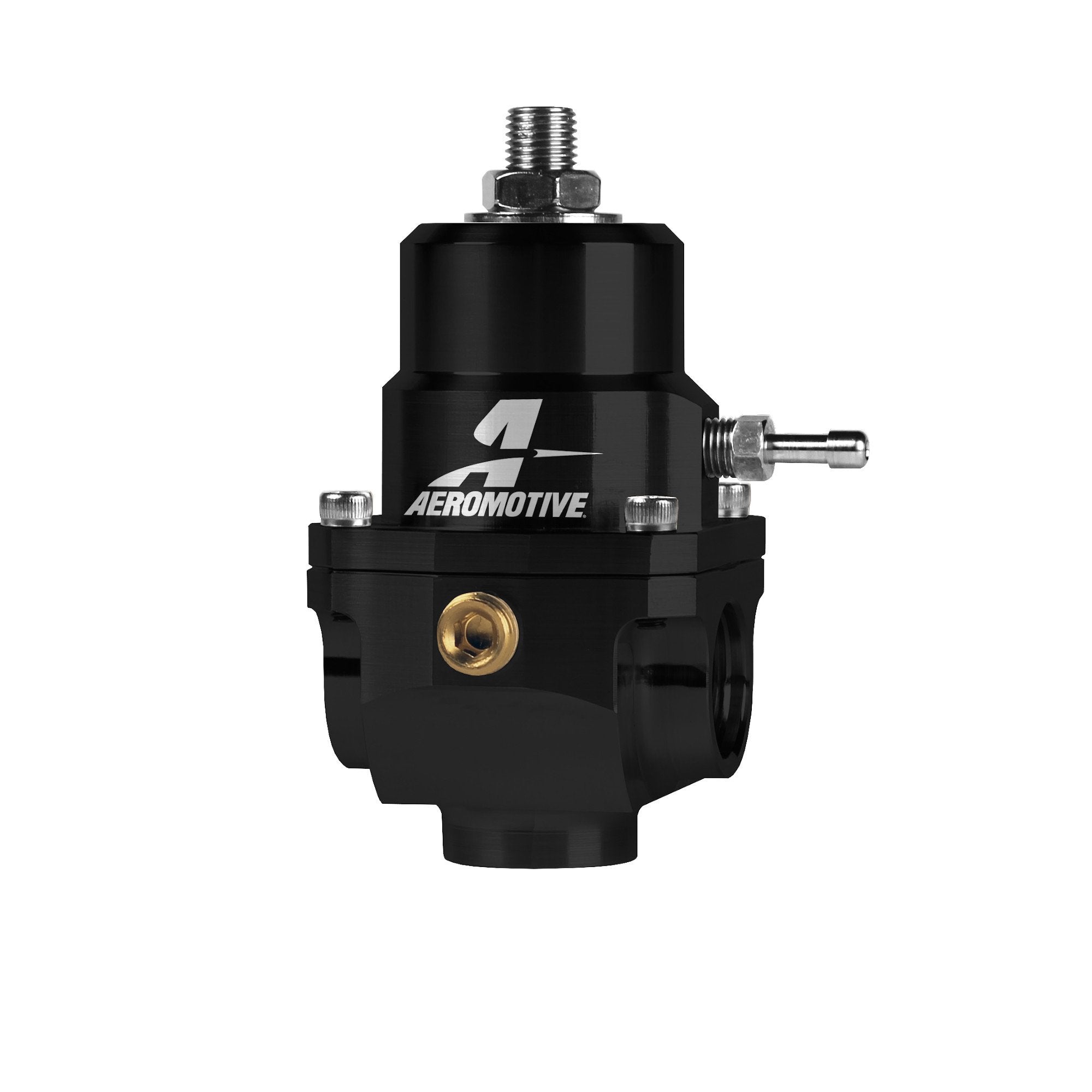

Aeromotive Regulator, X1 Adjustable, 35-75psi, .313 Valve, (2)-08inlets, -08 return
Part Number 13305 X1 EFI Pro Bypass Regulator
EFI Bypass Regulator for Return Style Systems
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
Part Number 13014 150 GPH 0.313" Carb Conversion Kit
Part Number 13013 150 GPH 0.188" EFI Conversion Kit
Part Number 13015 250 GPH 0.313" EFI Service Kit
View Installation Instructions
EFI Bypass Regulator for Return Style Systems
- Base fuel pressure adjustable from 35-75 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for forced induction engines.
- Gasoline, ethanol, alcohol and diesel compatible.
- 2 - ORB -08 inlet/outlet ports on the sides.
- 1 - ORB-08 return port on the bottom port.
- 1 - 1/8" NPT Gauge Port with plug.
- 1/16" NPT Boost Port with 5/32" hose barb.
- Compatible with X1 EFI Conversion kit.
- Compatible with X1 Carb Conversion kit.
- 0.313" bypass with matching spring and poppet.
- Handles up to 250 GPH with AN-08 return line.
- Ideal for high flow-Aeromotive Pumps including Eliminator, Pro-Series, Brushless 3.5 and 5.0.
- Mounting bracket included (not shown).
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
Part Number 13014 150 GPH 0.313" Carb Conversion Kit
Part Number 13013 150 GPH 0.188" EFI Conversion Kit
Part Number 13015 250 GPH 0.313" EFI Service Kit
View Installation Instructions
