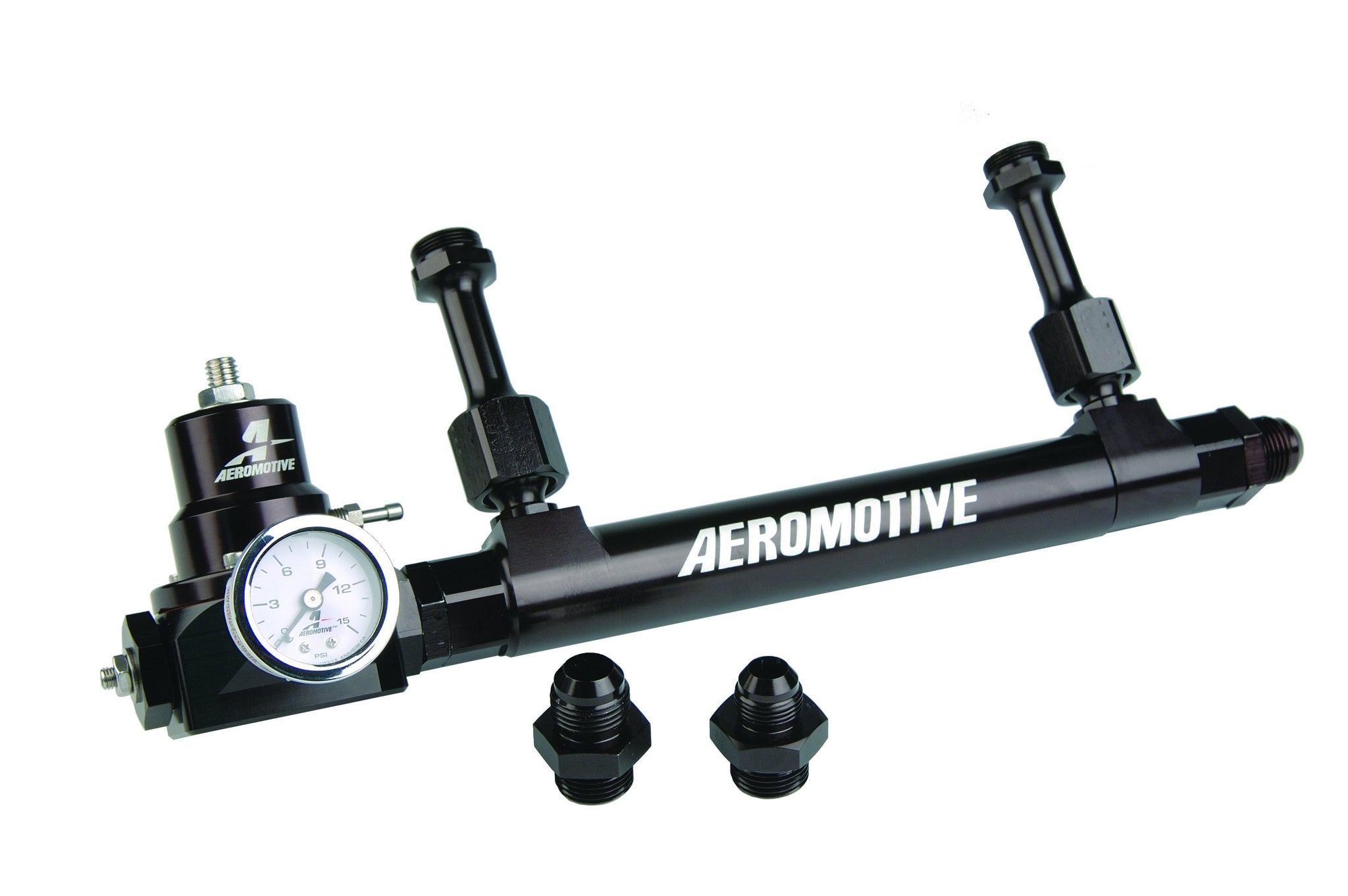

Part Number 17249: Dual Action Adjustable Fuel Log Kit
Includes 14201 Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge
For 4150/4500 Holley Style Float Bowls
The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (Part Number 14201) and Demon (Part Number 14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive Part Number 13212 (A2000 Bypass - gasoline) or Part Number 13214 (Double Adjustable Bypass - alcohol) fuel pressure regulators.
Includes 14201 Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge
For 4150/4500 Holley Style Float Bowls
The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (Part Number 14201) and Demon (Part Number 14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive Part Number 13212 (A2000 Bypass - gasoline) or Part Number 13214 (Double Adjustable Bypass - alcohol) fuel pressure regulators.
- Carburetor inlets swivel + or - 2 0º in all directions.
- Telescoping center line 7 .700” to 13.450”.
- ORB-10 inlet and outlet ports.
- (2) 1/8” NPT ports for gauges or pressure transducers.
- 1.056 / .806” ID bore.
- Type II bright dip black anodized finish.View Installation Instructions
