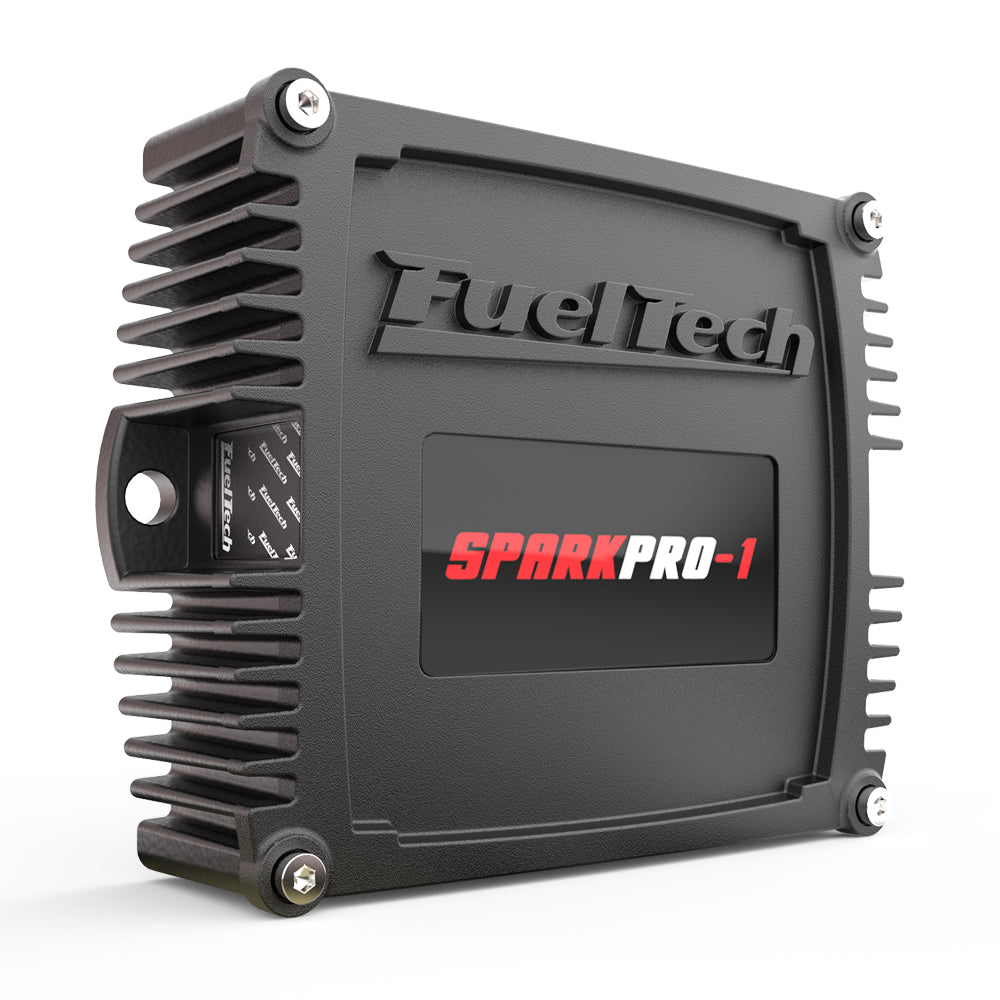

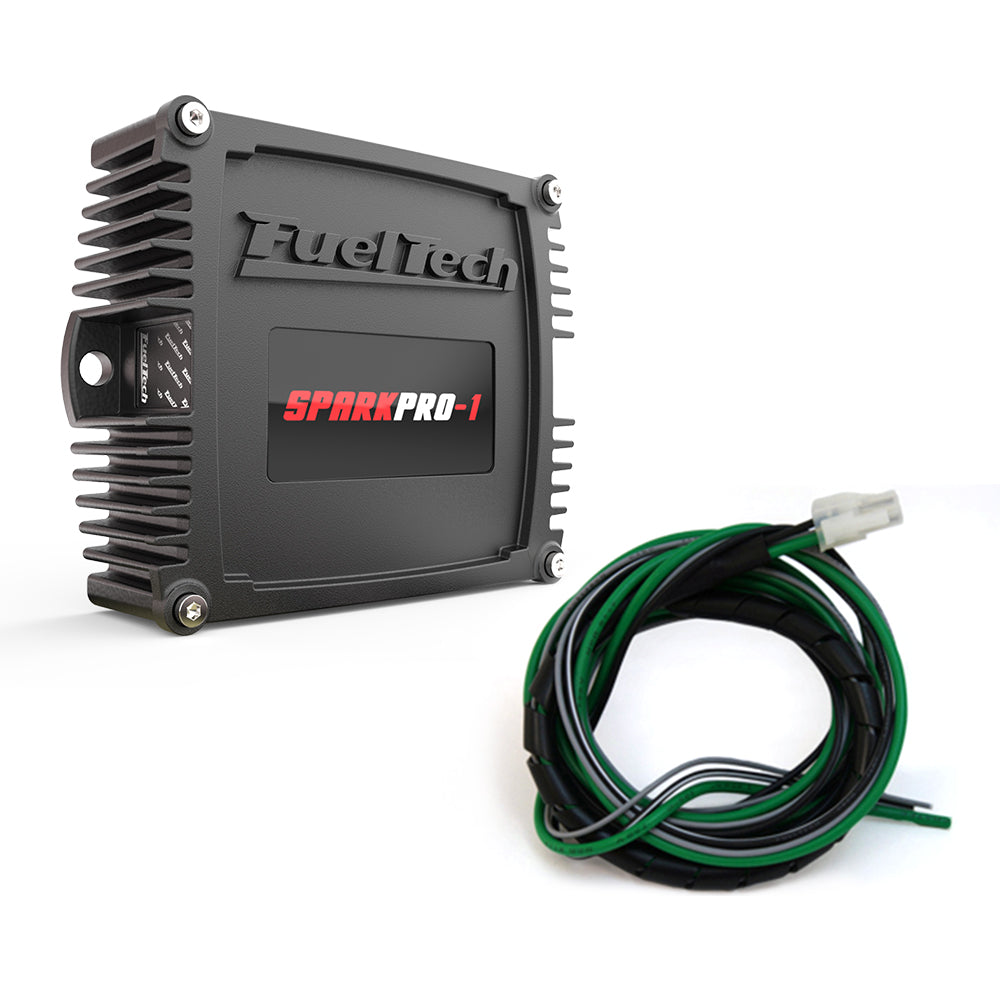

FuelTech’s SparkPRO-1 is a high-energy inductive ignition module designed to be used with ignition coils without an igniter (dumb coils). The SparkPRO-1 has 1 ignition outputs, each output may be connected to only one coil at a time, and is available in versions from 1 to 8 ignition outputs. It has a high voltage of up to 430V at the coil’s primary. SparkPRO ignition modules are compatible with any programmable ECU that has dwell control but cannot be used with a stock ECU.
Features:
Only recommend for 4-cylinder applications running a distributor with a FuelTech ECU.
- High energy inductive ignition
- SparkPRO-1 - 1 ignition output
- Available in versions from 1 to 8 ignition outputs
- High Voltage at the coil’s primary: up to 430V
Technical Description:
- Used only with “dumb” coils (coils without igniter)
- Each SparkPRO channel can be connected to only one coil at a time
- Compatible with any programmable ECU that has dwell control
- Cannot be used with stock ECU
- Dimensions: 115 x 90 x 33mm
