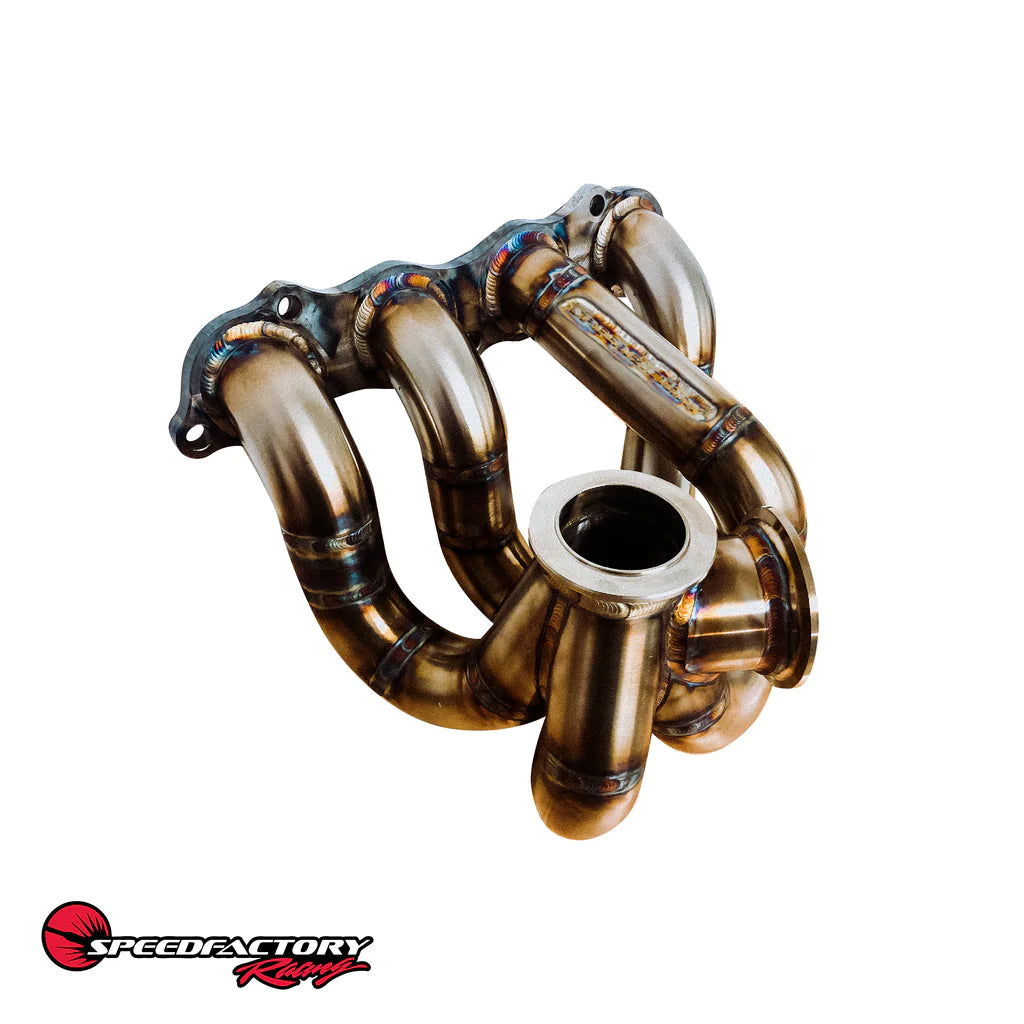

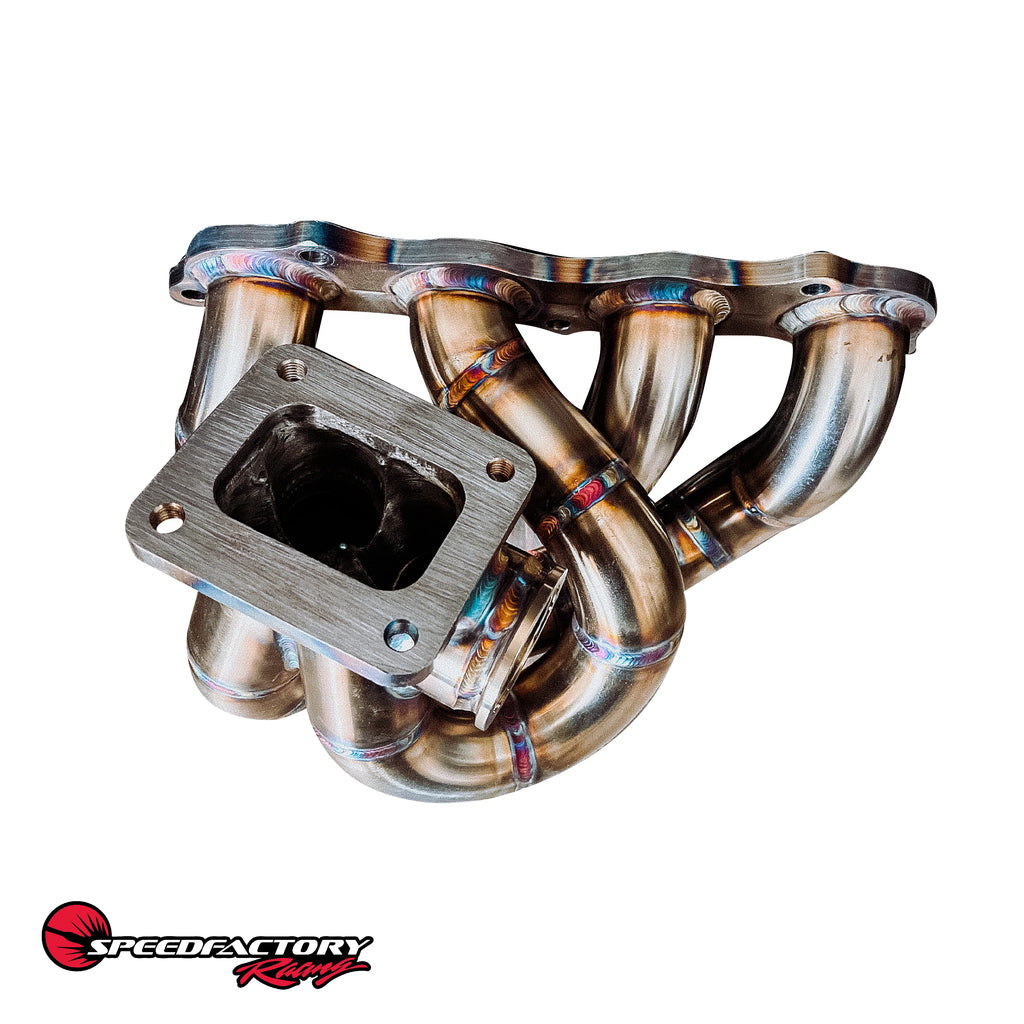

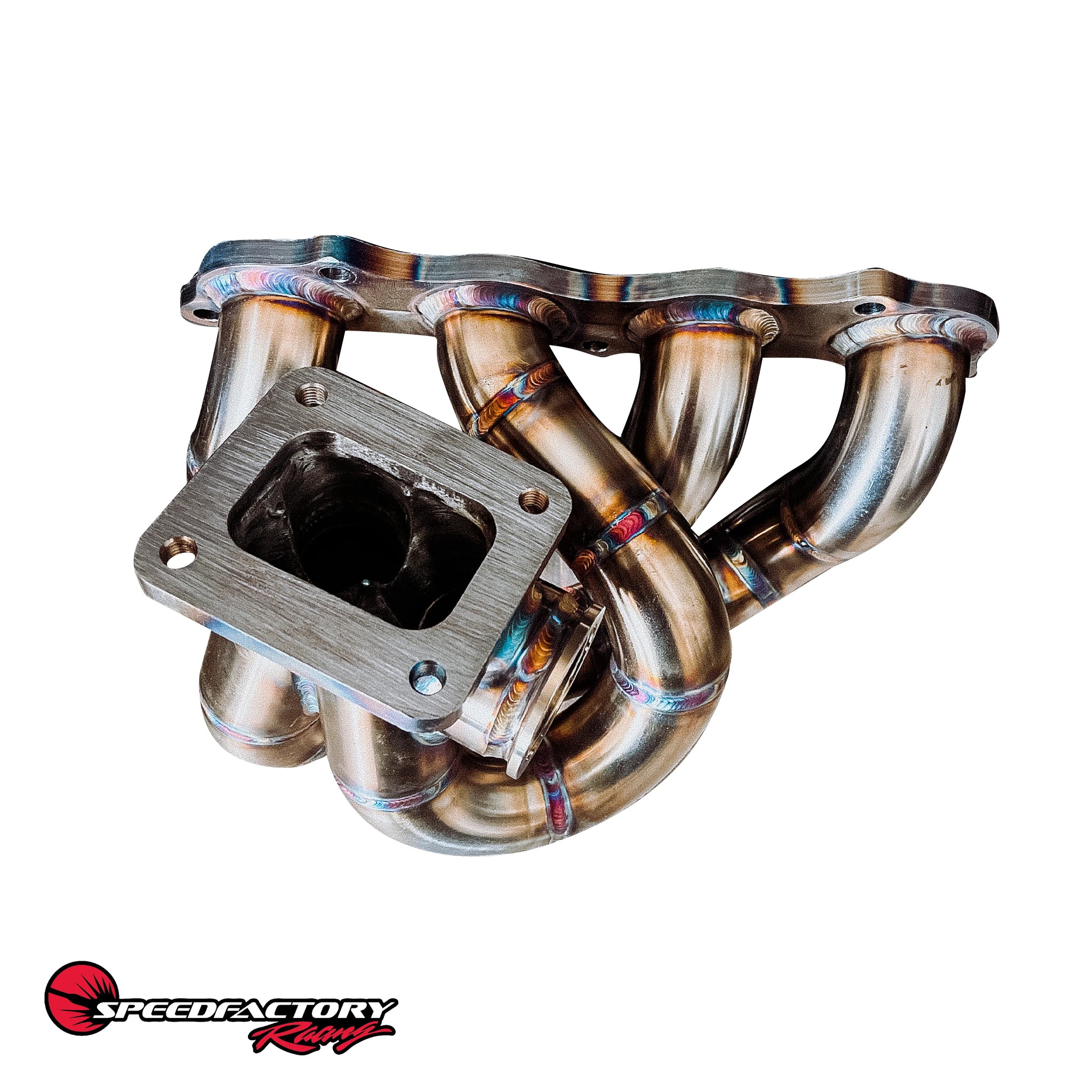

SpeedFactory Racing K-Series "Lean" Top Mount Turbo Manifold

CURRENT ESTIMATED MANIFOLD MANUFACTURING TIME IS 7-8 WEEKS.

The SpeedFactory Racing K-Series "Lean" Top Mount Turbo Manifold was designed to spool smaller to medium-sized turbos very quickly, producing broad powerbands that carry to the top of the RPM range. This manifold is for applications where large torque and great spool are necessary alongside big top-end horsepower, making it suitable for road race and drag race vehicles.

These manifolds are constructed from high quality 1.5” Schedule 40 stainless steel, and is TIG-Welded and back purged to ensure that you are receiving the highest quality product possible. Our cylinder head, wastegate, and turbine inlet flanges are CNC machined from ½” plate 1018 Steel and all mating surfaces are machined flat ensuring a perfect seal.

This manifold was designed to fit K20 / K24-Swapped vehicles (EG / DC / EK) with "Lean" mounts

Feel free to call us and check our current manifold inventory at (253)566-4331.

Limited Warranty on SpeedFactory Turbo Manifolds – Warranty is limited to welding defects ONLY, and to original purchaser. Invoice / Order number must be supplied. Warranty DOES NOT under any circumstances cover turbo manifolds that have been heat wrapped or that have improper downpipe and/or dumptube(s). This is at our discretion and pictures / video of your setup installed are required for any manifold warranty services.
