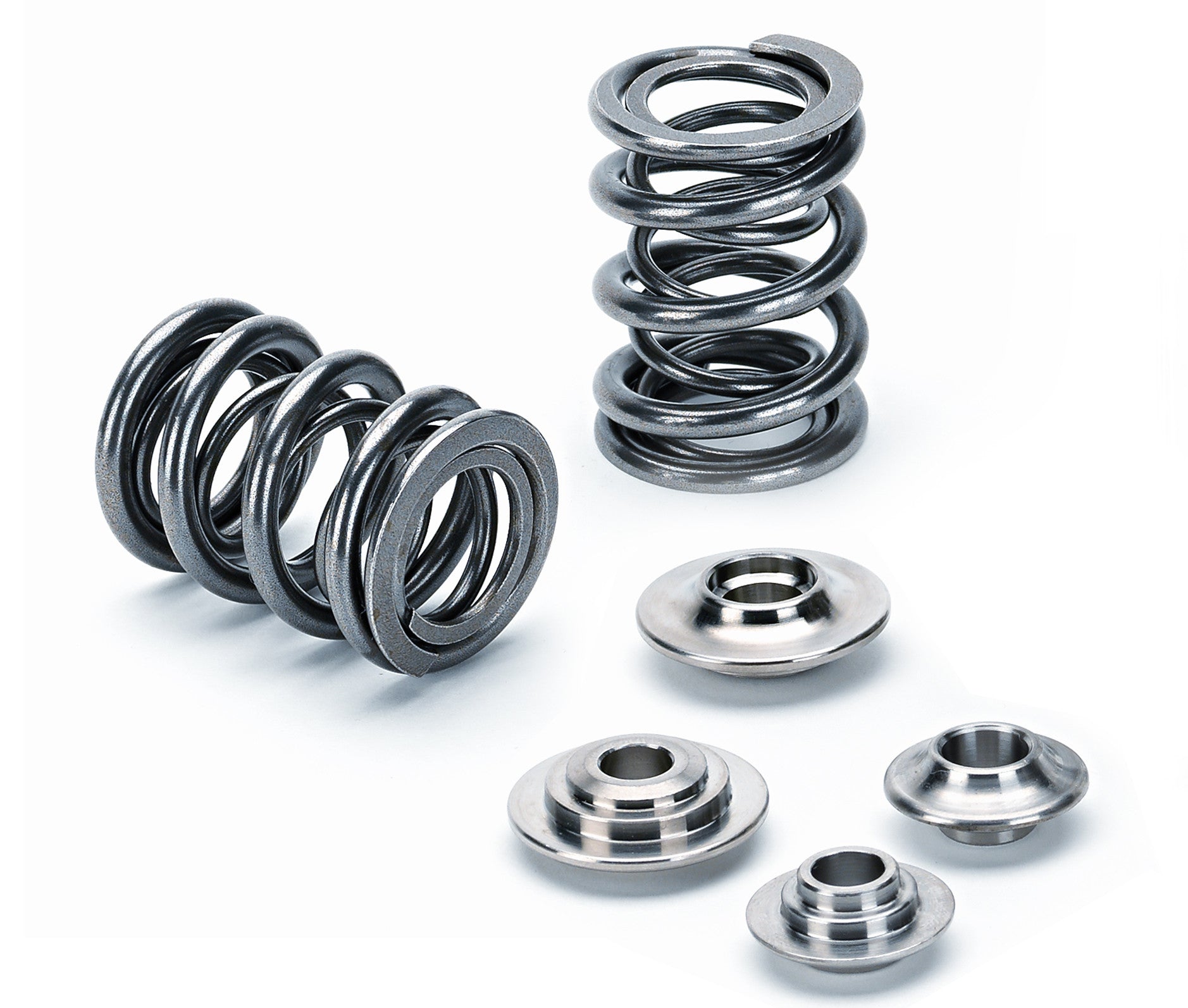

Supertech Performance SPRK-TS1015/N35 Dual Valve Spring 82@ 35mm (24)SPR-TS1015/N35 + (24)RET-TS5.5/T6 + SEAT-TS1015
Supertech Performance SPRK-TS1015/N35 Dual Valve Spring 82@ 35mm (24)SPR-TS1015/N35 + (24)RET-TS5.5/T6 + SEAT-TS1015
Supertech valve springs are computer designed to ensure smooth harmonics under high RPM and load. The stress levels are kept under control and fatigue is reduced for long durability under extreme conditions. These springs are made of premium Superclean Chrome Silicon Vanadium steel alloy, which is a tough alloy that was designed for higher performance and durability at high RPM's and memory retention.
Specifications:
- Outer Spring O.D.: 27.50mm
- Outer Spring I.D.: 20.00mm
- Inner Spring O.D.: 20.00mm
- Inner Spring I.D.: 15.20mm
- Seat: 82 @ 35 (lbs@mm)
- Open (lift): 215 @ 11 (lbs@mm)
- Max net lift: 14.50mm
- Coil bind: 20.70mm
- Rate: 12.10 lbs/mm
Retainer P/N: RET-TS5.5/T6 (24) + SEAT-TS1015 (12 for Intake) + Factory seat (12 for Exhaust)
Note: This is for a complete set of dual intake and exhaust valve springs. Retainers and spring seats are included if they are part of the kit.
