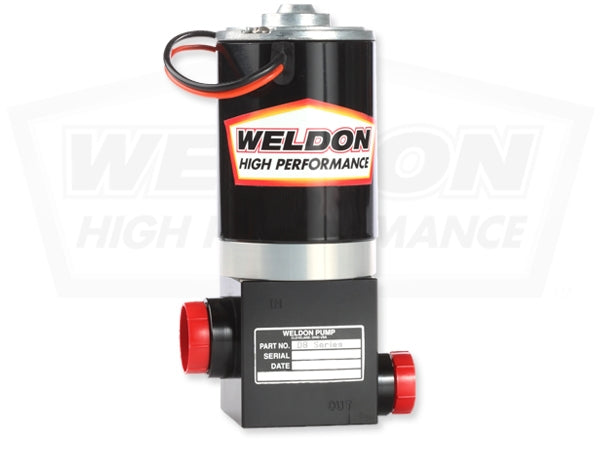

Weldon D2035-A Electric Fuel Pump

D2035-A (-12 inlet and -10 outlet)

• Fuel Injected Engines:
  • 1600 HP @ 50 PSI (Naturally Aspirated)
  • 1800 HP at 80 PSI (Boosted)
• Carbureted Engines:
  • 2000 HP @ 7 PSI (Naturally Aspirated)
  • 1800 HP @ 30 PSI (Boosted)
• Precise, consistent fuel delivery
• Self priming
• Pump element is 100% tool steel
• Body machined from billet aluminum
• All billet body pumps are 100% serviceable
• Breakaway coupling prevents pump / motor damage in the event of contamination
• For carbureted or injected engines
• -12 inlet and -10 outlet o-ring ports
• 5.5 lbs

GPH/PSI Range: 180-210 GPH/0-80 PSI

Maximum Horsepower
1800 hp @ 14 V, EFI and Carb engines (900 hp on Methanol)

GPH/PSI Range: 180-210 GPH/0-80 PSI

Considerations: If your actual horsepower is close to the Max HP limit and/or you are considering a larger power adder, see Part # 2345-A HERE
